LIFE VISIO Photocell Sensor UAE
Price 200 AEDIn Stock
Original LIFE VISIO 20M Outdoor Safety Photocells for Automatic Gates

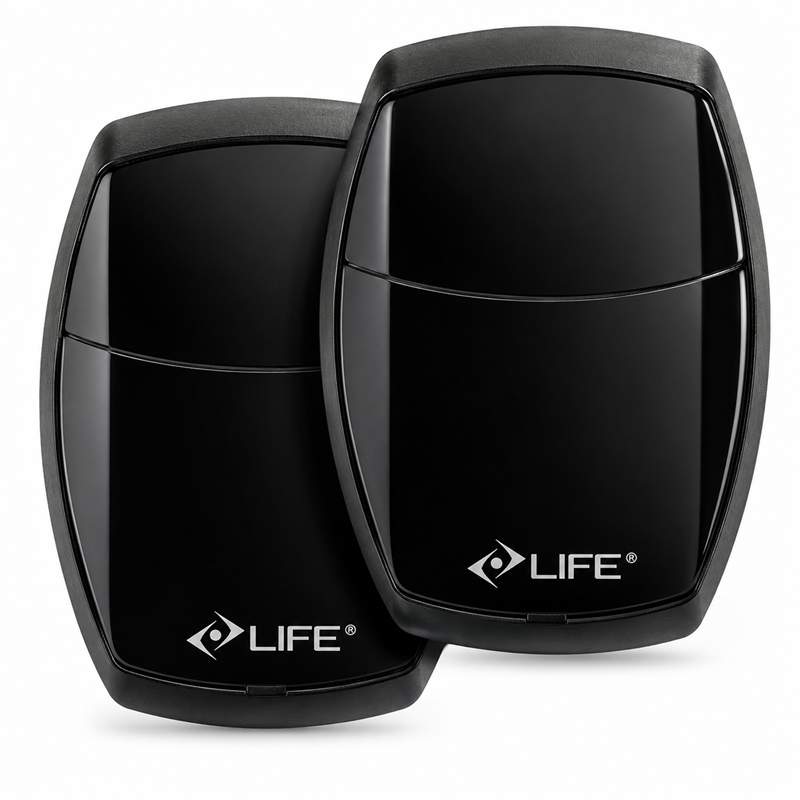

The LIFE VISIO Photocell Sensor is an original pair of synchronized outdoor safety photocells for automatic gates, garage doors, shutters and parking barriers.
The transmitter and receiver create an infrared safety beam across the entrance. When a vehicle, person or other obstacle interrupts the beam, the photocell provides a signal to the connected automation control board.
With a maximum operating range of 20 metres, 12–24V DC power supply and IP54 protection, LIFE VISIO provides reliable obstacle detection for compatible residential and commercial automation systems.
LIFE VISIO Key Features
- Brand: LIFE
- Model: VISIO
- Product Type: Outdoor Safety Photocell Sensor
- Package: 1 Pair – Transmitter & Receiver
- Maximum Range: 20 Metres
- Power Supply: 12–24V DC
- Current Consumption Tx / Rx: 25 mA / 35 mA
- Protection Rating: IP54
- Receiver Contacts: NC + NO
- Maximum Contact Rating: 1A / 24V DC
- Operating Temperature: -20°C to +55°C
- Synchronized transmitter and receiver
- Designed for outdoor automation applications
- Obstacle detection for automatic entrances
- Original LIFE Italy automation product
LIFE VISIO Technical Specifications
| Brand | LIFE |
| Model | VISIO |
| Product Type | Outdoor Safety Photocell Sensor |
| Package | 1 Pair – Transmitter & Receiver |
| Maximum Range | 20 Metres |
| Power Supply | 12–24V DC |
| Current Consumption Tx / Rx | 25 mA / 35 mA |
| Protection Rating | IP54 |
| Receiver Contact Type | NC + NO |
| Maximum Contact Capacity | 1A / 24V DC |
| Operating Temperature | -20°C to +55°C |
| Dimensions | 64 × 78 × 26 mm / 76 × 40 × 22 mm |
| Installation | Outdoor Surface-Mounted Photocell |
| Application | Gates, Garage Doors, Shutters & Barriers |
How LIFE VISIO Photocells Work
The VISIO system consists of a transmitter and receiver installed opposite each other across the entrance. The transmitter produces an infrared beam that is continuously monitored by the receiver.
If a vehicle, person or object interrupts the beam, the receiver signals the automation controller. Depending on the control-board programming, this can prevent closing, stop movement or reverse the gate or barrier.
20 Metre Safety Detection Range
LIFE specifies a maximum operating range of 20 metres. This makes VISIO suitable for many villa entrances, commercial gates, parking areas and other automatic access systems.
Correct alignment between the transmitter and receiver is important for reliable operation. Installation position, wiring and environmental conditions can also affect performance.
LIFE VISIO for Sliding Gates
VISIO can be integrated with compatible LIFE sliding gate motors where the control board provides the required photocell safety input.
This includes suitable LIFE ACER systems such as the ACER 600 KG and ACER 800 KG, as well as other compatible LIFE sliding gate operators.
LIFE VISIO for Swing Gates
The photocells can also protect compatible automatic swing gate systems.
Suitable applications include LIFE OP3 UNI 3M and LIFE OP5 UNI 5M installations when the photocells are connected and programmed according to the relevant control system.
Compatible LIFE Control Boards
LIFE VISIO can connect to compatible LIFE gate control systems. These include suitable LIFE RG1R DL sliding gate control systems.
For compatible OP3 and OP5 swing gate installations, VISIO can also work with the LIFE RG UNI RS DL Control Board.
Always follow the relevant control-board wiring diagram and programming instructions when connecting safety photocells.
Parking Barrier & Garage Door Applications
LIFE VISIO can be used with compatible automatic parking barriers to monitor the vehicle lane and provide an obstacle-detection signal to the barrier controller.
The photocells can also be integrated with compatible garage door automation systems that provide an appropriate photocell input, including suitable LIFE PROBO garage door opener installations.
Why Use Photocells on an Automatic Gate?
Photocells provide an additional detection system for an automatic entrance. When the infrared beam is interrupted, the gate controller can react according to its programmed safety logic.
This is especially useful at vehicle entrances where cars or pedestrians may pass through the gate movement area.
Common Photocell Problems
A VISIO photocell system may require inspection if you experience problems such as:
- Gate opens but does not close
- Gate reverses unexpectedly while closing
- Photocell LED does not respond correctly
- Safety input remains permanently active
- Transmitter and receiver cannot be aligned
- Damaged wiring or terminals
- Physical or moisture damage
These symptoms can also be caused by wiring, alignment, power-supply or control-board faults. Proper diagnosis is recommended before replacing the photocells.
LIFE VISIO Installation
The transmitter and receiver should be mounted opposite each other and correctly aligned across the entrance.
They must then be connected to the appropriate power and safety terminals on the automation control board. Wiring requirements vary between gate motors, garage door openers and parking barrier controllers.
LIFE VISIO Photocell Sensor Across UAE
We supply original LIFE VISIO photocells across Dubai, Sharjah, Abu Dhabi, Ajman, Ras Al Khaimah, Fujairah, Umm Al Quwain and Al Ain.
Professional installation, replacement, alignment and technical support are available according to the automation system and project requirements.
For control boards, remotes, receivers and other components, visit our LIFE Spare Parts section.
Frequently Asked Questions
What is LIFE VISIO?
LIFE VISIO is a pair of synchronized outdoor photocells designed to detect obstacles during the movement of compatible automatic gates, doors, shutters and barriers.
What is the maximum detection range?
The manufacturer specifies a maximum operating range of 20 metres.
What voltage does LIFE VISIO use?
VISIO operates from a 12–24V DC power supply.
Does LIFE VISIO come as a pair?
Yes. The product consists of a transmitter and receiver pair.
Can LIFE VISIO be installed outdoors?
Yes. VISIO is designed for outdoor use and has an IP54 protection rating.
Can VISIO be used with sliding and swing gates?
Yes. It can be integrated with compatible sliding and swing gate control systems that provide the appropriate photocell safety input.
Buy Original LIFE VISIO Photocell Sensor in UAE
Choose the original LIFE VISIO Photocell Sensor for compatible automatic sliding gates, swing gates, garage doors, shutters and parking barriers. Its 20 metre maximum range, 12–24V DC supply, IP54 protection and NC/NO contacts provide flexible obstacle detection for automatic entrance systems.
Original LIFE Italy Product | UAE-Wide Delivery | Professional Installation Available | Technical Support
