PD-132 Vehicle Loop Detector 230V UAE

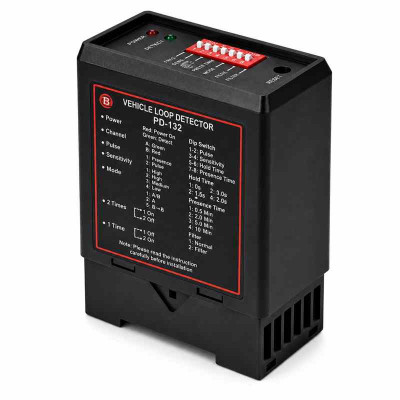

PD-132 230V Single Channel Inductive Vehicle Loop Detector

The PD-132 Vehicle Loop Detector 230V UAE is a professional single-channel inductive vehicle detector designed for automatic parking barriers, sliding gates, access control systems and vehicle entrance management. When connected to a correctly installed inductive loop coil in the ground, the PD-132 detects the presence of a vehicle and provides a relay output to the connected automation system.

The PD-132 loop detector operates on 230V AC and offers fast vehicle detection with a response time of approximately 10 milliseconds. With four adjustable sensitivity levels, a wide 20–170 kHz operating frequency range and configurable relay functions, it provides flexible vehicle detection for residential, commercial and industrial access applications.

We supply PD-132 vehicle loop detectors in Dubai, Sharjah, Abu Dhabi, Ajman and throughout the UAE, with professional loop installation, wiring, setup and technical support available for parking barriers and automatic gate systems.

PD-132 230V Loop Detector Key Features

• Model: PD-132
• Product Type: Single Channel Inductive Vehicle Loop Detector
• Working Power Supply: 230V AC
• Power Consumption: Approx. 4.5VA
• Relay Output Rating: Up to 240V / 5A
• Frequency Range: 20 kHz to 170 kHz
• Response Time: Approx. 10 ms
• Sensitivity: 4 Adjustable Levels
• Loop Inductance: 50 μH to 1000 μH
• Recommended Loop Inductance: 100 μH to 300 μH
• Maximum Loop Lead Cable: Approx. 20 Metres
• Operating Temperature: -20°C to +65°C
• Storage Temperature: -40°C to +85°C
• Single-channel vehicle detection
• Adjustable operating frequency
• Adjustable sensitivity
• Configurable relay output modes
• Filter mode for electrically noisy environments
• Suitable for automatic parking barriers and gate automation

PD-132 Technical Specifications

Model	PD-132
Detector Type	Single Channel Inductive Vehicle Loop Detector
Power Supply	230V AC
AC Voltage Tolerance	+10% / -15%
Power Consumption	Approx. 4.5VA
Relay Output Rating	240V / 5A
Frequency Range	20 kHz – 170 kHz
Response Time	Approx. 10 ms
Sensitivity	4 Adjustable Levels
Loop Inductance Range	50 μH – 1000 μH
Recommended Loop Inductance	100 μH – 300 μH
Maximum Loop Connection Cable	20 Metres
Signal Holding Time	Unlimited or 10 Minutes, Depending on Setting
Operating Temperature	-20°C to +65°C
Storage Temperature	-40°C to +85°C
Housing Dimensions	78 × 40 × 108 mm
Application	Parking Barriers, Gates & Vehicle Access Control

How the PD-132 Vehicle Loop Detector Works

The PD-132 inductive loop detector works together with a loop coil installed beneath the road surface. The loop creates an electromagnetic field. When a vehicle moves over or stops above the loop, the metal mass of the vehicle changes the loop inductance.

The PD-132 detects this change and activates its relay output. The relay can then send a command to a compatible parking barrier, automatic gate or vehicle access control system.

Single Channel Vehicle Detection

The PD-132 is a single-channel loop detector, meaning it monitors one inductive loop coil. This makes it suitable for individual entry, exit, safety or vehicle-presence detection points.

For installations requiring two independent loops on one detector, a dual-channel model such as PD-232 may be more appropriate.

PD-132 for Automatic Parking Barriers

The PD-132 parking barrier loop detector can be used with compatible automatic boom barriers to detect vehicles entering, leaving or remaining beneath the barrier arm.

Depending on the barrier controller and relay configuration, the detector can be used for automatic opening, vehicle presence, safety protection or automatic closing logic.

Vehicle Safety Loop for Parking Barriers

A vehicle loop detector can be installed underneath the barrier boom area as a safety or presence loop. When a vehicle is positioned over the loop, the detector relay can provide a signal to the barrier control board.

The exact safety function depends on the parking barrier control logic and how the PD-132 relay has been wired and configured.

Automatic Opening Loop Detector

The PD-132 can also be configured as a vehicle detection input for automatic opening when connected to a suitable OPEN input on a compatible gate or parking barrier controller.

This is useful at exit lanes, warehouse gates and controlled vehicle entrances where a detected vehicle should automatically trigger an opening command.

PD-132 for Sliding Gate Motors

The PD-132 vehicle loop detector can be integrated with compatible automatic sliding gate control boards. Its relay output can be connected to a suitable opening, step-by-step or safety input depending on the required function.

For an open-only application, the relay should be connected to the dedicated OPEN input of the gate controller when such an input is available rather than a step-by-step input.

PD-132 for Swing Gate Motors

The detector can also be used with compatible automatic swing gate systems for vehicle detection, automatic exit opening or safety functions.

The correct control-board input and relay mode must be selected according to the desired operation.

4-Level Sensitivity Adjustment

The PD-132 provides four adjustable sensitivity levels. Sensitivity determines how strongly the detector responds to changes in loop inductance caused by a vehicle.

Correct sensitivity depends on loop size, number of turns, installation depth, road construction and the type of vehicles that need to be detected.

20 kHz to 170 kHz Operating Frequency

The detector operates within a frequency range of approximately 20 kHz to 170 kHz. Frequency adjustment can help reduce interference when multiple loop detectors are installed near one another.

Nearby loops should be configured carefully to minimize electrical interaction and false detection.

10 Millisecond Fast Response Time

The PD-132 provides a fast response time of approximately 10 ms, allowing rapid detection of changes in the inductive loop.

This makes the detector suitable for vehicle access applications requiring responsive barrier or gate operation.

PD-132 Filter Mode

The PD-132 includes a configurable filter mode for installations affected by electromagnetic interference. When enabled, the filter can help reduce false triggering caused by electrical disturbance.

The manufacturer notes that increased filtering can reduce detector sensitivity and increase response time, so filter mode should generally be used only where interference is causing unstable operation.

Vehicle Presence Holding Time

The PD-132 can maintain vehicle-presence detection while a vehicle remains over the loop. The available holding configuration includes continuous detection or a time-limited mode of approximately 10 minutes, depending on the detector setting.

The appropriate mode should be selected according to whether the loop is being used for safety, presence detection or traffic-control logic.

Loop Inductance Requirements

The PD-132 supports loop inductance from approximately 50 μH to 1000 μH, with a recommended operating range of approximately 100 μH to 300 μH.

Correct loop construction is extremely important. An improperly sized loop, damaged cable or incorrect number of turns can cause unstable detection or prevent the detector from tuning correctly.

Vehicle Loop Cable Installation

The inductive loop cable is normally installed in a saw-cut slot beneath the road surface. The loop shape and number of turns should be selected according to the lane width and vehicle detection requirements.

The loop lead cable running from the detection loop to the PD-132 should be twisted to help reduce electrical interference. The manufacturer specifies a maximum loop connection cable length of approximately 20 metres.

Recommended Applications for PD-132

• Automatic parking gate barriers
• Vehicle exit loops
• Vehicle safety loops
• Sliding gate automation
• Swing gate automation
• Residential community entrances
• Commercial parking facilities
• Office parking entrances
• Warehouse vehicle gates
• Factory entrances
• Industrial access control
• Traffic management systems

PD-132 vs PD-232 Loop Detector

The PD-132 is a single-channel vehicle loop detector designed for one inductive loop. The PD-232 is intended for applications requiring two loop detection channels.

Choose PD-132 when only one vehicle detection point is required. For applications requiring independent entry and safety loops, two separate detection points or direction-sensitive configurations, a suitable dual-channel detector may be preferable.

PD-132 230V vs 24V vs 12V

The PD-132 is available in different supply-voltage versions. Your website currently lists separate 230V, 24V and 12V PD-132 products.

This page should remain dedicated to the 230V AC version. Always select a detector that matches the power supply available in the gate or parking barrier control system.

Why Choose PD-132 Vehicle Loop Detector?

The PD-132 230V loop detector combines fast response, adjustable sensitivity and flexible loop tuning in a compact single-channel detector. Its broad inductance range and configurable relay functions make it suitable for many professional vehicle detection applications.

For customers searching for a vehicle loop detector in UAE, PD-132 provides a practical solution for automatic gates, parking barriers, access control and vehicle presence detection.

PD-132 Loop Detector in Dubai

We supply and install the PD-132 Vehicle Loop Detector in Dubai for parking barriers, automatic gates, commercial car parks and vehicle access systems.

Professional loop cutting, cable installation, wiring, detector setup and technical support are available according to project requirements.

PD-132 Loop Detector in Sharjah

Customers searching for a PD-132 loop detector in Sharjah can order the 230V single-channel vehicle detector for compatible parking barrier and automatic gate systems.

Installation and technical support are available throughout Sharjah.

Vehicle Loop Detector Supply Across UAE

We supply PD-132 vehicle loop detectors across the UAE, including Dubai, Sharjah, Abu Dhabi, Ajman, Ras Al Khaimah, Fujairah, Umm Al Quwain and Al Ain.

Whether you require a loop detector in Dubai, parking barrier vehicle detector in Sharjah, inductive loop detector in Abu Dhabi or a vehicle detection system anywhere in UAE, PD-132 supply, installation and technical support are available.

PD-132 Vehicle Loop Detector Frequently Asked Questions

What is PD-132?

PD-132 is a single-channel inductive vehicle loop detector used to detect vehicles through an inductive loop coil installed in the road surface.

What voltage is this PD-132?

This product page is for the 230V AC PD-132 version.

How many loops can PD-132 detect?

The PD-132 is a single-channel detector and normally monitors one inductive vehicle loop.

What is the response time?

The manufacturer specifies a response time of approximately 10 milliseconds.

How many sensitivity settings are available?

The PD-132 provides four adjustable sensitivity levels.

What is the loop frequency range?

The operating frequency range is approximately 20 kHz to 170 kHz.

What loop inductance does PD-132 support?

The detector supports approximately 50 μH to 1000 μH, with a recommended range of approximately 100 μH to 300 μH.

Can PD-132 automatically open a parking barrier?

Yes. When correctly configured, the PD-132 relay can be connected to a compatible barrier controller's opening input to trigger automatic opening when a vehicle is detected.

Can PD-132 be used as a safety loop?

Yes. It can be configured for vehicle-presence or safety detection where supported by the connected parking barrier or gate control system.

Can PD-132 open a sliding gate only?

Yes, if the gate control board provides a dedicated OPEN input. Connect the detector relay to OPEN rather than a step-by-step input when an open-only command is required.

What is the maximum loop lead cable length?

The specification lists a maximum loop connection cable length of approximately 20 metres.

What happens if the loop detector gives false detections?

Check the loop cable, loop construction, twisted lead cable, operating frequency and sensitivity first. The PD-132 also provides a filter mode for environments with significant electromagnetic interference.

Do you provide PD-132 installation in UAE?

Yes. Professional vehicle loop installation, cable cutting, wiring, programming and technical support are available in Dubai, Sharjah and other UAE locations.

Do you deliver PD-132 across UAE?

Yes. UAE-wide delivery is available across Dubai, Sharjah, Abu Dhabi, Ajman, Ras Al Khaimah, Fujairah, Umm Al Quwain and Al Ain.

Buy PD-132 230V Vehicle Loop Detector in UAE

Order the PD-132 230V Vehicle Loop Detector in UAE for automatic parking barriers, sliding gates, vehicle access control and traffic-management applications. With single-channel detection, 10 ms response, four sensitivity levels and a wide inductance range, PD-132 provides reliable vehicle detection for professional automation systems.

UAE-Wide Delivery | Professional Loop Installation Available | Gate Barrier Integration | Technical Support
