Inductive Vehicle Loop Detector for Automatic Gate Barriers & Access Control Systems

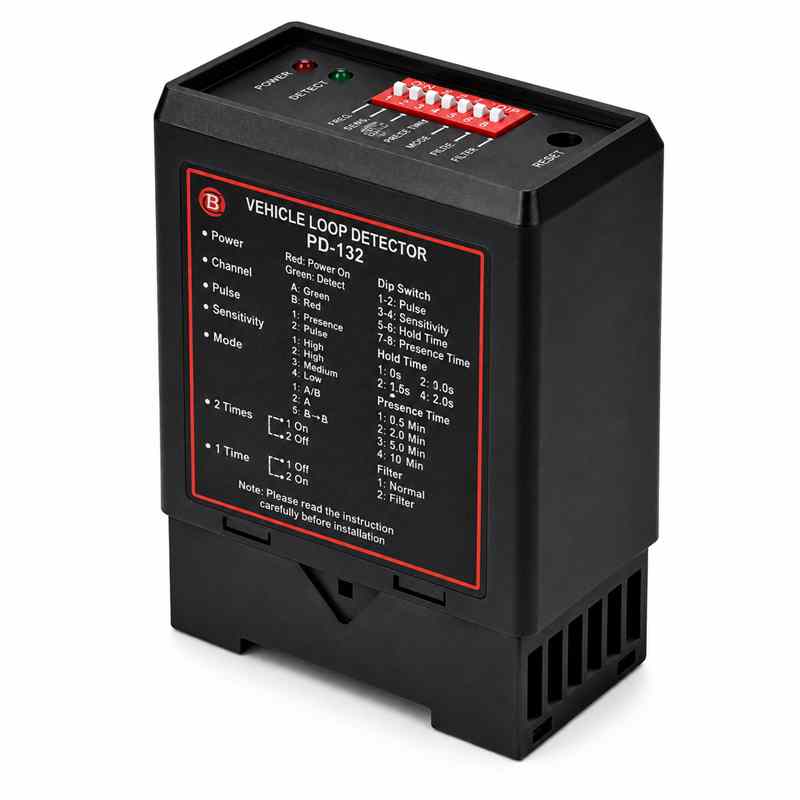

PD-132 Vehicle Loop Detector is a high-performance inductive loop detector designed for automatic gate barriers, parking systems, access control systems and traffic management applications. It provides accurate vehicle detection, reliable operation and adjustable sensitivity for a wide range of installations.
The PD-132 single channel loop detector is designed to work with inductive loop systems and offers fast response time, stable performance and easy installation. It is ideal for automatic gate openers, parking barriers and vehicle access control systems across Dubai, Sharjah, Abu Dhabi and the UAE.
PD-132 Key Features
- Single Channel Inductive Vehicle Loop Detector
- Suitable for Automatic Gate Barriers
- Vehicle Presence Detection
- Fast Response Time
- Adjustable Sensitivity Settings
- Reliable Vehicle Access Control
- Easy Installation & Configuration
- Weather Resistant Installation Capability
Technical Specifications
- Supply Voltage: 230V AC
- Voltage Tolerance AC: +10% / -15%
- Voltage Tolerance DC: ±15%
- Power Consumption: 4.5VA
- Output Relay Rating: 240V / 5A
- Operating Temperature: -20°C to +65°C
- Storage Temperature: -40°C to +85°C
- Frequency Range: 20 KHz to 170 KHz
- Reaction Time: 10ms
- Signal Holding Time: Unlimited or 10 Minutes When Loop Is Permanently Covered
- Sensitivity: Adjustable in 4 Levels
- Loop Inductance: 50μH to 1000μH
- Recommended Loop Inductance: 100μH to 300μH
- Maximum Loop Connection Cable Length: 20 Meters
- Housing Dimensions: 78 x 40 x 108 mm
Applications
- Automatic Gate Barriers
- Parking Barrier Systems
- Vehicle Access Control Systems
- Industrial Gate Automation
- Traffic Control Systems
- Commercial Parking Facilities
- Residential Community Entrances
Why Choose PD-132 Vehicle Loop Detector?
- Accurate Vehicle Detection
- Fast 10ms Response Time
- Adjustable Sensitivity Settings
- Reliable Barrier Protection
- Compatible with Most Barrier Systems
- Professional Installation Available Across UAE
- UAE Wide Delivery & Technical Support
Buy the PD-132 vehicle loop detector in UAE with professional installation, technical support and fast delivery across Dubai, Sharjah, Abu Dhabi and the UAE.
